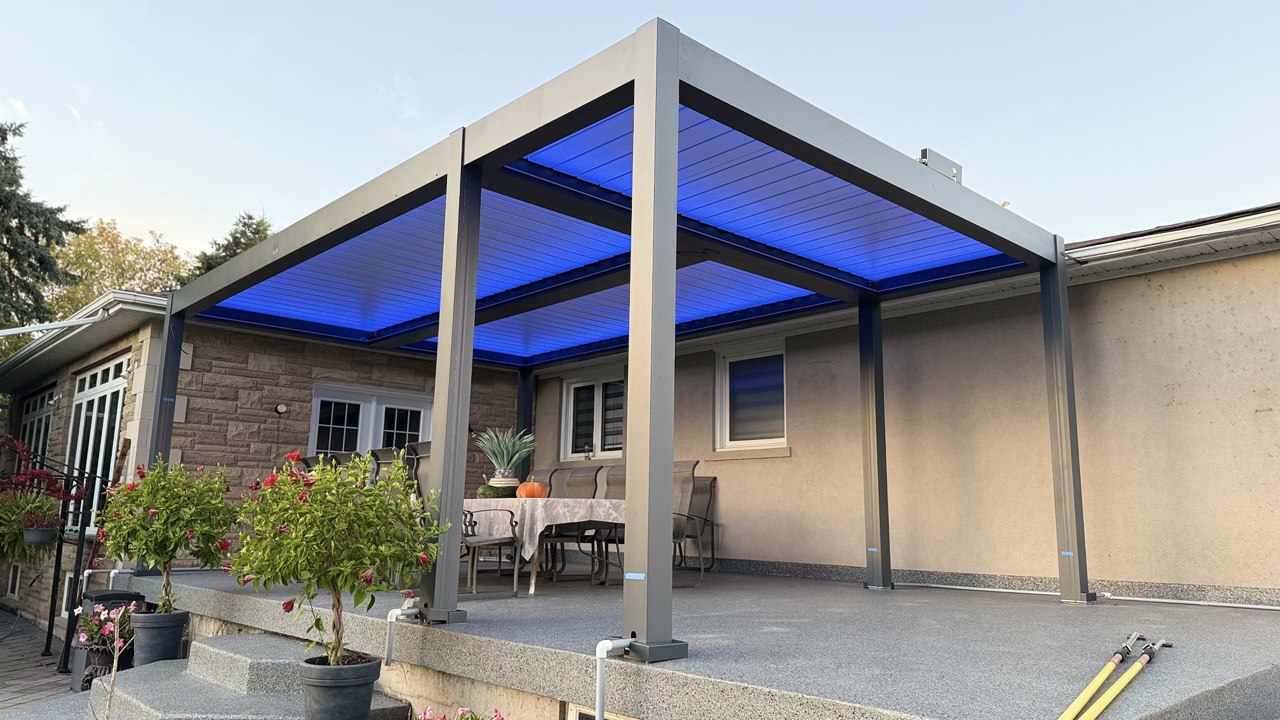

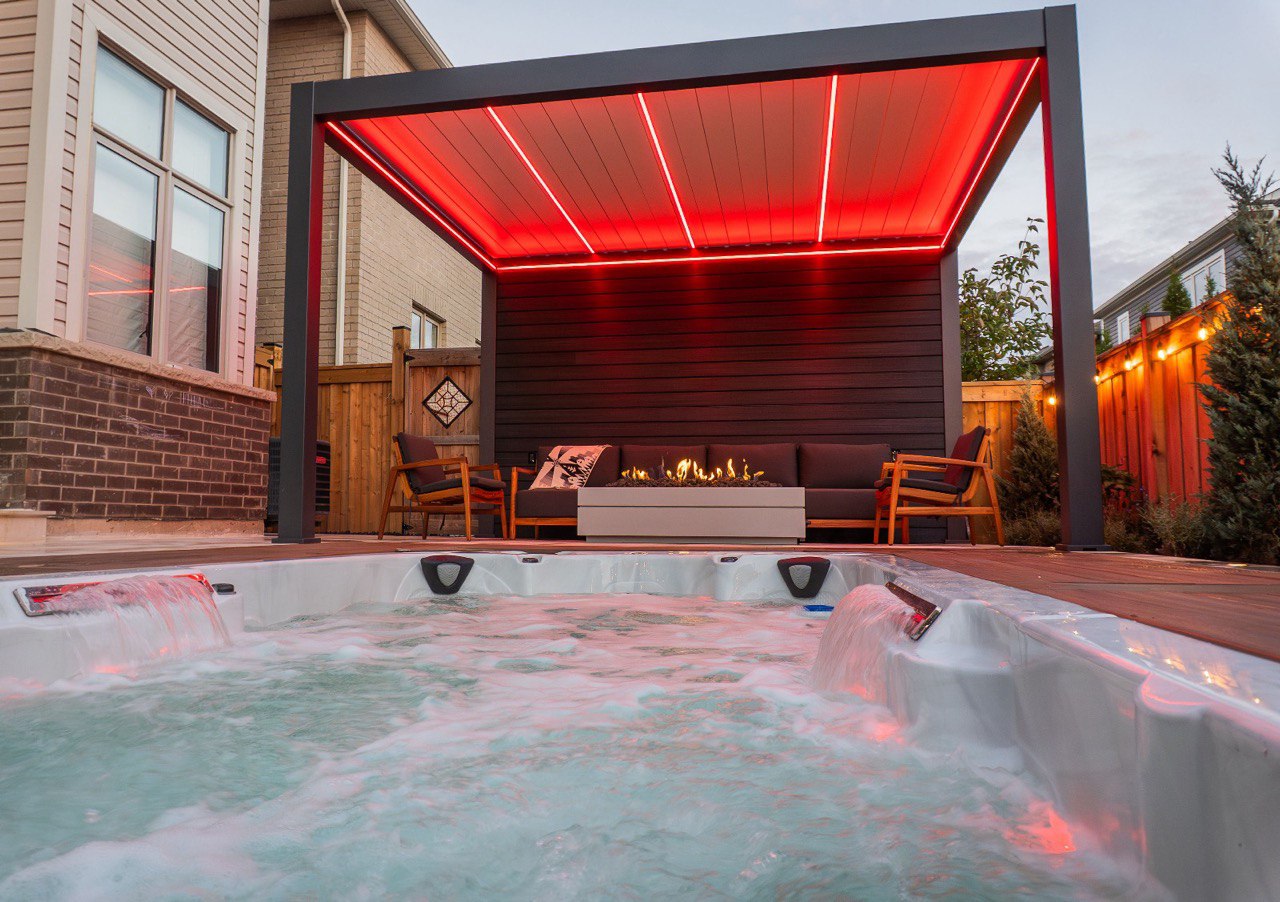

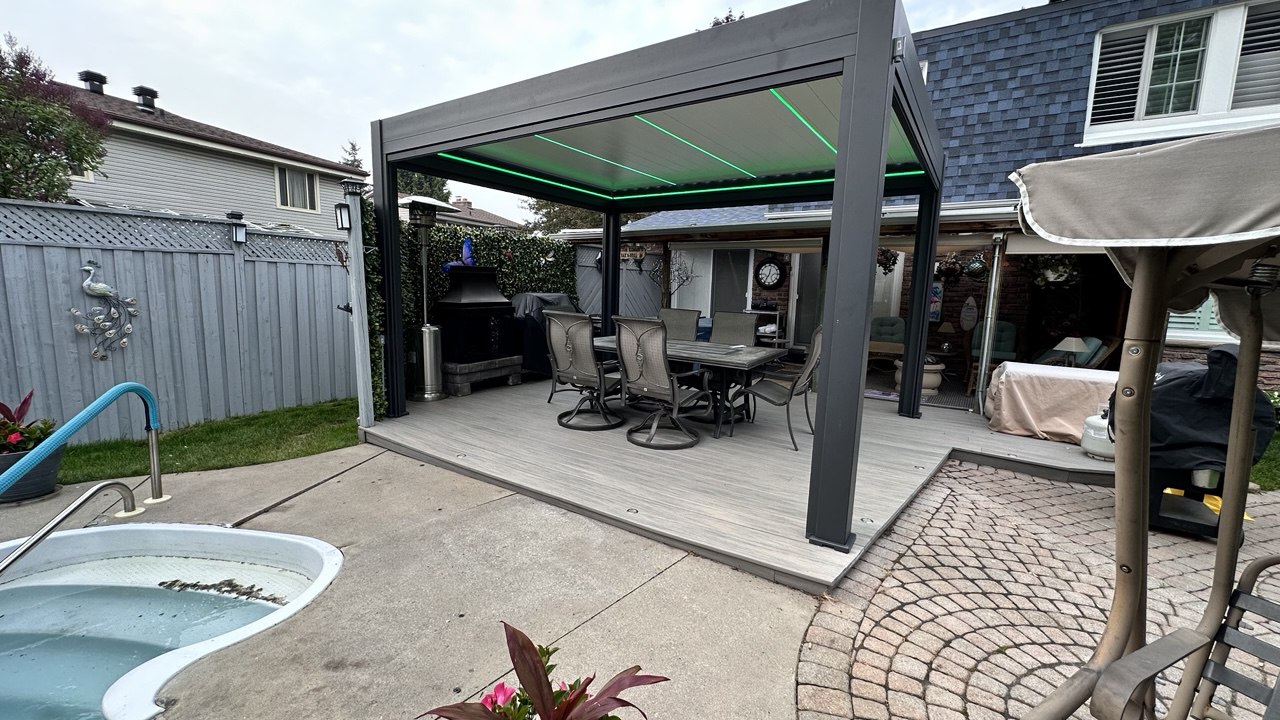

Aluminum Pergola Maxx 10"x13" with Louvered Roof

Aluminum Pergola Maxx (3000mm x 4000mm) 10’x13’

Blades: RAL 9016 Traffic White matt color
Material: 6063 T5
Aluminium / Louver (Flat): 138.5 x 30 x thk 1,2mm
Post: 120 x 120 mm x thk 1,4mm
Height Post: 2,4m
Beam: 170 x 47 mm x thk 1,5mm
Gutter: 66 x 58 mm x thk 1,5mm
Blades:Orientable Blades, From Degree 0 to 120°
Colour&Finish: Powder coated
Motor: 110-240V IP65
Wind load: 100km/h
Snow load: 100kg/m2

Pergola Motorized Roof Solutions

Technical Information

02 Difference

What is the difference between Eco-Maxx and Maxx Pergola

We upgraded the whole product system, so it is not Eco-Maxx anymore, it is a new pergola system, and it will be more stronger, stable and beautiful

Upgrade the blade shape to make the gap smaller between the each blades

Upgrade the leak-tightness by reducing the gap between the main beam and the blade

Upgrade the post shape and size to make it more stable and secure, and the edge of the post will be smoothly

Upgrade the post connector to make it more stronger and stable. Meanwhile the triangle bracket can be removed. Less screws and save the assembling time.

Upgrade the main beam and the hole in main beam to avoid the moving of blades

Upgrade the fixed way of control arm by using the plastic accessories instead of the screws (still testing). It will be more easy to connect the blade with the control arm.
